ioBroker Teltonika

This adapter reads data from Teltonika routers via MQTT and from Teltonika devices via SNMP.

Routers connect to the adapter themselves over MQTT. Devices without an MQTT publisher — the TSW managed switches, for example — are polled over SNMP instead; enter them under the SNMP tab, or let the network scan find them. A router that offers both is only ever read once, over SNMP.

Over MQTT it can read the following information:

  • temperature ('RUT2', 'RUT9', 'RUTX', 'RUT3', 'RUT1', 'TRB2', 'TRB5', 'OTD', 'RUTM', 'RUTC')
  • signal strength
  • mobile operator
  • network state
  • connection type (2G/3G/4G/5G)
  • wan IP address
  • uptime
  • name
  • digital input 1 ('RUT9')
  • digital input 2 ('RUT9')
  • analog input ('RUT9', 'TRB2', 'TRB141')
  • pin 2 status ('TRB2')
  • pin 3 status ('RUT1', 'RUT2', 'RUT9', 'RUTX', 'RUT3', 'TRB1', 'TRB2', 'TRB5', 'RUTM')
  • pin 4 status ('RUT1', 'RUT2', 'RUT9', 'RUTX', 'RUT3', 'TRB1', 'TRB2', 'TRB5', 'RUTM')

Usage

Steps:

  • Start the instance first

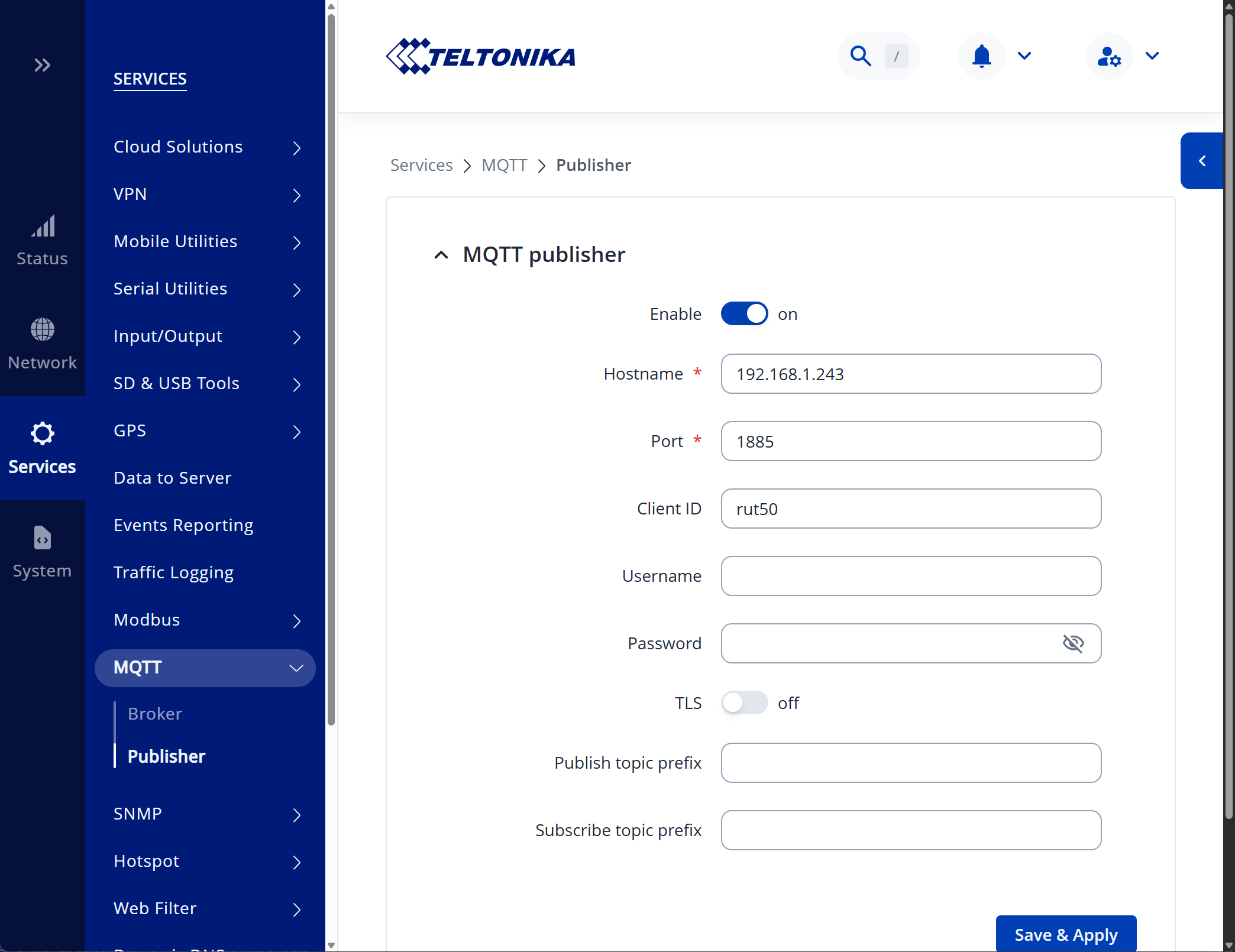

  • Go to your router and open MQTT settings Settings
    • Enable MQTT publisher
    • Set the MQTT broker address to the address of your ioBroker instance
    • Set the MQTT broker port. Important: the default port of this adapter is 1885 to not interfere with other MQTT adapters
    • Save the settings
    • Some routers need a restart to apply the settings
  • After some time, the data points will be created in the adapter instance

Notice: tested is only with RUTC and TSW202 devices.

SNMP

Devices that offer no MQTT publisher are read over SNMP:

  • Enable the SNMP agent on the device under Services → SNMP → SNMP Settings and set a read-only community
  • In the adapter, open the SNMP tab, enter an address range and press Scan, or add the device by hand
  • Supported today are the RUTC and TSW2 families. Other models fall back to the values every Teltonika device shares (serial, name, uptime, CPU); to read them fully, download the MIB from the device under SNMP System Summary, drop it into MIBs/ and run npm run generate-oids

Beside the values listed above, SNMP also provides per-port statistics on switches (link, speed, duplex, transferred bytes and rates) and the named digital inputs and outputs of a router.

Four further branches are available but switched off by default, because they expose the location of the device and identifiable clients, and because they change on every poll:

  • GPS position — latitude, longitude, accuracy, satellites and fix time
  • Wi-Fi radios and networks — radio state and channel, and per SSID the encryption, mode and client count
  • Hotspot sessions — the IP, user and authorisation state of each session
  • Wi-Fi client list — <device>.wifiClients.count and <device>.wifiClients.list, the latter holding the MAC address and SSID of every associated station as JSON

Only the count and that one JSON state: a channel per MAC address would leave every phone that ever joined the network behind in the object tree. For the devices that matter, use presence below — it needs no branch.

Presence

Each row of the Presence tab is a person - like the adapter fb-checkpresence - with one or more MAC addresses separated by commas (a phone and a watch, or the addresses one phone uses in two networks) and an optional group. The person is present while one of the polled routers reports one of its addresses as associated to its Wi-Fi. The object tree is the same as in ioBroker.tr-064, so the widgets of both adapters read it alike:

teltonika.<n>.presence.persons.<name>.present                    boolean
teltonika.<n>.presence.persons.<name>.lastArrival / lastDeparture number  — ms, 0 = not known yet
teltonika.<n>.presence.persons.<name>.presentSince / absentSince number  — minutes, 0 in the other state
teltonika.<n>.presence.persons.<name>.presentToday / absentToday number  — minutes since midnight
teltonika.<n>.presence.persons.<name>.history                    json    — last comings and goings, newest first
teltonika.<n>.presence.persons.<name>.devices                    string  — the addresses seen within the grace period
teltonika.<n>.presence.persons.<name>.lastSeen / router / ssid           — the last sighting
teltonika.<n>.presence.present / allPresent                      boolean — anybody / everybody at home
teltonika.<n>.presence.presentCount / absentCount / presentNames / absentNames / json
teltonika.<n>.presence.groups.<group>.*                                  — the same for the persons of one group
teltonika.<n>.presence.guests.present / count / names / json             — stations of the *Guest SSIDs*
teltonika.<n>.presence.unknown.present / count / names / json            — stations nobody watches (option)

The departure is the last sighting, not the end of the grace period. The first reading after the setup is no event: lastArrival and lastDeparture stay 0 until the person comes or leaves for the first time. Times, sums and history survive a restart. For a longer history, switch on a history instance (history, sql, influxdb) for present - the widgets read the events from there.

Only the configured persons get states of their own; guests and unknown stations are only a count and one JSON list, so the tree does not keep every visitor's address - which is also why presence works without switching the Wi-Fi client list on.

The addresses do not have to be typed: Read connected devices asks every configured SNMP device for its association list and appends what is not listed yet, as inactive rows named client_<last three octets>. The log then names each station with its SSID and says whether its address is a random one — that is how a phone is told from a printer, because iOS and Android make up a locally administered address per network while a printer or a TV answers with the one burnt into it. Rename the rows that matter, tick Active, delete the rest. The button talks to the running instance, so start it first.

Three things to know before building automations on it:

  • Enter the MAC address the router shows, under Status → Wireless, not the one printed on the phone. Phones use a separate random address per network. It is stable as long as the network stays known to them, and changes again once the network is forgotten and rejoined.
  • A phone drops out of the association list while it sleeps and reappears seconds later. A sighting therefore counts for the grace period (180 s by default, or per row), so leaving is noticed that late and arriving immediately. Below about a minute the states start to flicker.
  • It is read over SNMP only. The MQTT publisher of a router answers a fixed set of parameters that does not include its clients, so a router that only connects over MQTT reports no presence.

Switching ports

Fill in a write community for a device and its ports become switchable through <device>.ports.<name>.enabled. Left empty, the adapter only reads and the state is created without the write flag.

The switch rides on ifAdminStatus of the standard IF-MIB, because the Teltonika MIB exposes nothing writable at all. PoE cannot be controlled: these devices answer with no objects under the POWER-ETHERNET-MIB.

A port only becomes switchable when its name matches exactly one interface. On a TSW202 that covers every port, since both tables say port1…port8. A RUTC reports four ports named LAN against interfaces lan1…lan4, which cannot be paired with any certainty, so only its WAN port is switchable.

Widgets for the device manager

Two components are registered for the devices adapter:

  • Teltonika devices — every router and switch of an instance as a tile: reachability, a strip showing the link state of each port, and for a router the operator, connection type and signal. Clicking opens the full detail with the front panel, the digital inputs and outputs, and the WAN addresses.
  • Teltonika ports — the front panel of a single device on its own tile, with link, speed, duplex and transferred bytes per port. Ports are drawn the way they are printed on the hardware: odd numbers on the upper row, even below, fibre cages in their own group. The device is picked from a dropdown that the adapter fills, and clicking the tile opens the same detail dialog for that one device.

A router additionally shows its WAN interfaces as mwan3 tracks them: name, failover status (online, standby, notracking), whether the interface is enabled, and for how long it has been up. Note that the address column of the WebUI has no counterpart here — over SNMP mwan3 reports the hosts it pings to judge a link, not the address the interface holds.

Where a write community is configured, a port can be switched from the panel. There is deliberately no PoE indicator — see above, these devices expose no PoE objects at all, so a bolt icon would stand in for data that does not exist.

The widgets discover devices from the object tree rather than the adapter configuration, because MQTT routers announce themselves and SNMP devices appear on their first poll.

Widgets for vis-2

The same two views are available as a widget set for vis-2 (set Teltonika):

  • Teltonika devices — all devices of an instance, shown as a summary (devices online, port strips), as one tile per device, or with the full detail of every device right inside the widget. Clicking the summary or a tile opens the detail dialog.
  • Teltonika ports — the front panel of one device, picked from a list of the instance's devices, or its full detail inside the widget.

Switching ports from the widgets is off by default and has to be enabled in the widget's settings.

Traps

The adapter can listen for SNMP traps. Enable it under the SNMP tab and point the device at this host under Services → SNMP → Trap Settings. Note that port 162 is privileged on Linux, so a higher port may be needed.

Each notification appears as <device>.traps.<name> holding the time it last arrived, and <device>.traps.last names the most recent one. Most Teltonika notifications declare no payload — of the seven a RUTC defines, only signalChangeNotification carries anything — so a trap is recorded and then triggers an immediate poll of that device, which is where the actual values come from. A TSW202 defines no traps at all.

Changelog

1.1.2 (2026-10-14)

  • (@GermanBluefox) The occupied ports - MQTT (TCP) and, if enabled, the SNMP trap receiver (UDP) - are reported to js-controller 8 (registerUsedResource)

1.1.1 (2026-10-14)

  • (@GermanBluefox) Added presence detection like fb-checkpresence: a person with the MAC addresses of its devices and an optional group becomes presence.persons.<name> with present, last arrival and departure, since when, the sums of the day and the last comings and goings; groups, guests (by SSID) and unknown stations are summarised
  • (@GermanBluefox) Added the widgets "Person" (one person, chosen by name, with free icons, pictures, texts and colours, last arrival and departure and the comings and goings) and "Presence" (list of the persons) for vis-2, and "Teltonika person" for ioBroker.devices
  • (@GermanBluefox) Added the optional Wi-Fi client list, with the MAC address and SSID of every associated station as JSON
  • (@GermanBluefox) Added a button that fills the presence table from the devices currently connected to the routers, named after the host name the router knows or the manufacturer of the MAC address
  • (@GermanBluefox) Fixed the log being flooded with received pubrel ... for unknown messageId: a QoS 2 release is now always answered, which is what stops the router from repeating it
  • (@GermanBluefox) Removed the retransmitInterval and retransmitCount settings, which were read and never used, and gave an unreleased QoS 2 message an expiry instead of keeping it for the life of the connection
  • (@GermanBluefox) Fixed the build: the type declarations of net-snmp were missing, so 1.1.0 was never published

1.0.1 (2026-09-23)

  • (iobroker-bot) Adapter requires node.js >= 22 now.
  • (@GermanBluefox) Added vis-2 widgets: overview of all devices and front panel of one device
  • (@GermanBluefox) Fixed the device manager widgets failing to load now and then with React error #527

1.0.0 (2026-08-10)

  • (bluefox) Added SNMP support for devices without an MQTT publisher, such as the TSW switches
  • (bluefox) Added a network scan that finds Teltonika devices and fills the device table
  • (bluefox) Split the configuration into an MQTT and an SNMP tab
  • (bluefox) Added optional SNMP branches for GPS, Wi-Fi and hotspot sessions, switched off by default
  • (bluefox) Removed the router type setting, which was never evaluated
  • (bluefox) Split the modem address: wan keeps the IPv4 address, wanIPv6 is added where the device has one
  • (bluefox) Added an SNMP trap receiver that records notifications and polls the device that sent one
  • (bluefox) Community strings and SNMPv3 keys are now stored encrypted
  • (bluefox) Ports can be switched through ports.<name>.enabled when a write community is configured
  • (bluefox) Added two device manager widgets: an overview of all devices and a front panel view of the ports
  • (bluefox) info.connection now also lists the devices polled over SNMP, so an instance without MQTT clients no longer appears disconnected
  • (bluefox) Added the WAN interfaces of a router under interfaces.<name>: status, enabled and uptime
  • (bluefox) A port state created before a write community was configured now becomes writable instead of staying read-only forever

0.1.0 (2025-12-07)

  • (bluefox) Changed roles of the states
