Десять виджетов для ioBroker.vis-2 , отображающих значение в виде индикатора:
| Виджет | Идентификатор | Например |
|---|---|---|
| Цветовой индикатор | tplGauge2Color | полукруг из цветных сегментов со стрелкой |

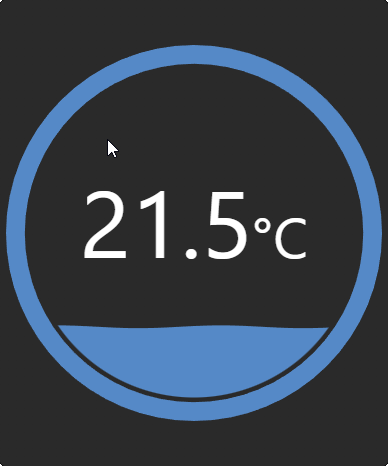

| Уровень воды | tplGauge2Water | влажность, заполнение в процентах |
| индикатор заряда батареи | tplGauge2Battery | Аккумулятор датчика, телефона или автомобиля с индикатором зарядки. |
| Радиальный измерительный прибор | tplGauge2Radial | мощность, скорость, давление — классический инструмент |
| Дуговой калибр | tplGauge2Arc | любое значение с маркером заданной точки, также в виде светодиодных сегментов |
| Линейная колея | tplGauge2Linear | горизонтальная или вертикальная полоса, например, мощность сети от -3 до 6 кВт |
| Термометр | tplGauge2Thermometer | внутренняя и наружная температура |
| Компас | tplGauge2Compass | Направление и скорость ветра, курс |
| Танк | tplGauge2Tank | мазут, цистерна, пеллеты |
| Кольца | tplGauge2Rings | до пяти значений одновременно, например, фотоэлектрическая система, потребление, батарея. |
Виджеты отрисовываются в виде простых SVG-изображений с использованием React, без библиотек для построения графиков или пользовательского интерфейса, и соответствуют светлой и темной темам vis-2.
Документация
Все виджеты со всеми настройками и скриншотами: Английский | Немецкий
Changelog
WORK IN PROGRESS
- (bluefox) Rewrote the color, water and battery gauge as plain SVG without react-gauge-chart, react-liquid-gauge, react-battery-gauge, d3 and MUI - the widget set works with the React 19 version of vis-2 again. Projects keep all their settings
- (bluefox) Added 7 new widgets: radial gauge, arc gauge, linear gauge, thermometer, compass, tank and rings
- (bluefox) Color gauge: the value is shown below the needle, minimum and maximum can be shown, the needle length works,
0for corner radius, padding and margin is really 0 - (bluefox) Water gauge: digits after comma and color of the liquid; the value counts up during the rise animation
- (bluefox) Battery gauge: optional medium level, stroke width of the body, percent sign can be hidden, the text stays horizontal in a vertical battery
- (bluefox) Values that are not numbers are shown as text, a missing value as
– - (bluefox) All widgets follow the dark theme of vis-2
- (bluefox) Added documentation with screenshots (English and German)
- (bluefox) The adapter icon is an SVG now
- (bluefox) Updated packages and the build (vite 8, React 19 types)
2.0.3 (2026-06-04)
- (bluefox) Updated packages
2.0.2 (2025-08-26)
- (bluefox) Support for older Android devices
2.0.1 (2025-07-01)
- (bluefox) Rewritten with TypeScript
1.1.1 (2024-11-25)
- (bluefox) Allowed to define digits after comma for the color gauge
1.1.0 (2024-07-07)
- (bluefox) Removed withStyles package
1.0.4 (2024-05-26)
- (bluefox) updated packages
1.0.3 (2024-03-13)
- (bluefox) updated packages
1.0.2 (2024-01-02)
- (bluefox) Allowed showing text in every widget
1.0.0 (2023-12-05)
- (bluefox) updated packages
- (bluefox) Allowed showing text on battery
0.2.2 (2023-11-10)
- (bluefox) update packages
0.2.0 (2023-07-28)
- (bluefox) Changed layout of widgets
- (bluefox) Added text color settings to water widget
0.1.14 (2023-07-01)
- (bluefox) Changed layout of widgets
0.1.13 (2023-06-28)
- (bluefox) Better compatibility
0.1.12 (2023-03-22)
- (bluefox) update packages
0.1.9 (2023-03-02)
- (bluefox) Packages were updated
0.1.5 (2023-02-23)
- (bluefox) Packages were updated
0.1.4 (2022-11-13)
- (bluefox) initial commit
