Color selector widgets for ioBroker.vis and ioBroker.vis-2

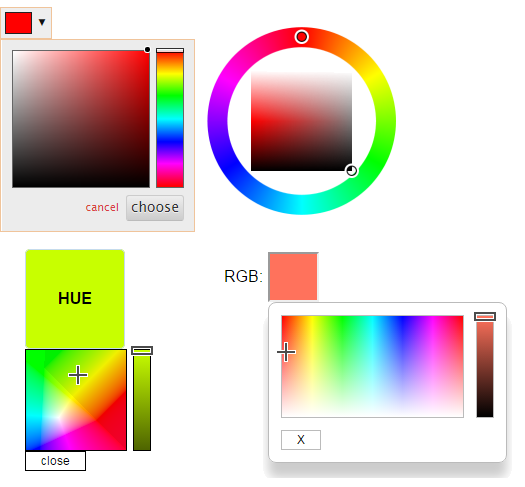

Example

Nine widgets to set and to show a colour: three general colour pickers, one for Homematic lights and five for Philips HUE lights.

vis and vis-2

The adapter ships every widget twice:

vis (vis-1) uses the EJS/jQuery widget set in widgets/colorpicker.html, which loads spectrum, jscolor, farbtastic and the CIE helper of huepi.
vis-2 uses the React widget set in widgets/vis-2-widgets-colorpicker/, built from src-widgets/. It needs no jQuery and no third-party picker at all - the pickers are drawn with CSS and one canvas.

Both declare the same widget ids (tplRGBSpectrum, tplSpectrumHomematic, tplRGBFarbtastic, tplJscolor, tplHUEjscolor, tplHUEPickerXY, tplHUEIndicatorXY, tplHUEPickerCT, tplHUEIndicatorCT) and the same attribute names, and vis-2 prefers a React widget over an EJS one. So a project made with vis keeps working after switching to vis-2 - the widgets simply render with the React implementation.

The React widgets need vis-2 2.12.8 or newer. With an older vis-2 the EJS widgets are used.

Documentation

Every widget with its settings and screenshots: English | Deutsch

Changelog

WORK IN PROGRESS

(bluefox) All nine widgets were ported to vis-2 as React widgets, without jQuery, spectrum, jscolor and farbtastic
(bluefox) The widgets of a vis-1 project keep all their settings: same widget ids, same attribute names
(bluefox) The CT indicator is a React widget as well, although its vis-1 template is marked with data-vis-2-ignore
(bluefox) Added the setting "Picker in the widget", which shows the colour picker instead of a small colour box
(bluefox) Added "Unit" (mired or Kelvin) and the range "Warmest"/"Coldest" to the two color temperature widgets
(bluefox) The gamut letters A, B and C are recognized now, not only the model ids of the lamps
(bluefox) The pickers follow touch and pen, and they no longer re-compute the whole colour field on every change
(bluefox) The colour is only written every 200 ms while dragging, and once more when the pointer is released
(bluefox) The widget settings are translated in eleven languages
(bluefox) Added documentation with screenshots for every widget (English and German)
(bluefox) Fixed the color wheel: it really writes and reads hue/saturation/brightness now
(bluefox) Fixed the divisor of the Philips HUE widget, the rounding of saturation and lightness of the spectrum, and the hue, which was written as text
(bluefox) "level" is only sent to a HUE lamp if a Level ID is configured, so a colour change does not set the brightness
(bluefox) Updated the CI to the current ioBroker actions and added a CodeQL workflow

2.1.0 (2025-11-25)

(oweitman) loaded an additional javascript file for the widget jscolorcie to fix

2.0.3 (2023-03-17)

(bluefox) Made it work with vis-2.0

1.2.0 (2020-04-14)

(bluefox) Corrected html structure

1.1.1 (2016-11-30)

(Pmant) add new hue bulbs and fix gamut

1.1.0 (2016-05-31)

(Pmant) add homematic colorpicker

1.0.2 (2016-05-20)

(bluefox) Fix Philips HUE Colorpicker

1.0.0 (2016-05-19)

(bluefox) rewrite all widgets

0.2.0 (2016-05-15)

(Pmant) add hue CIE picker

0.1.3 (2016-01-25)

(bluefox) add precision

0.1.2 (2016-01-25)

(bluefox) enable ID Select dialog

0.1.1 (2015-09-27)

(bluefox) update packets

0.1.0 (2015-07-09)

(bluefox) initial checkin
