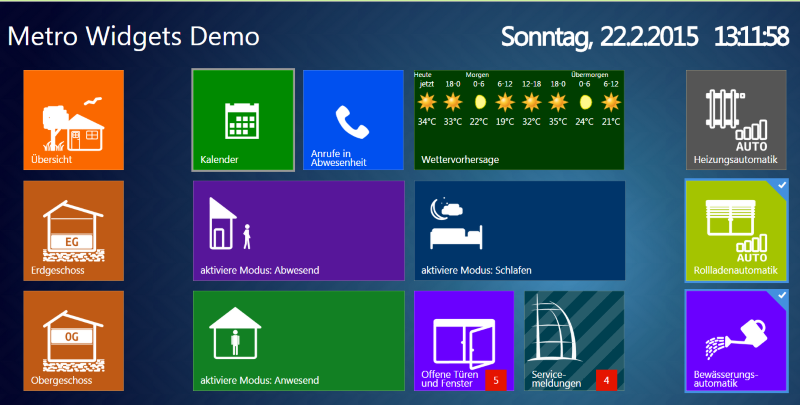

Metro widget sets for ioBroker.vis and ioBroker.vis-2. Widgets are styled as Windows Metro interface. Screenshot

vis and vis-2

The adapter ships every widget twice:

vis (vis-1) uses the EJS/jQuery widget set in widgets/metro.html.
vis-2 uses the React widget set in widgets/vis-2-widgets-metro/, built from src-widgets/.

Both declare the same widget ids (tplMetroTileBool, tplMetroTileDimmer, …) and the same attribute names, and vis-2 prefers a React widget over an EJS one. So a project made with vis keeps working after switching to vis-2 - the widgets simply render with the React implementation, which looks and behaves like the vis-1 one, without jQuery, jQuery UI or CanJS.

The React widgets need vis-2 2.12.8 or newer. With an older vis-2 the EJS widgets are used.

Documentation

Every widget with its settings and pictures: English | Deutsch

Development

npm run build builds the vis-2 widget set into widgets/vis-2-widgets-metro/.
npm run check-widgets checks the React widgets against the vis-1 templates: ids, attributes, sizes, pictures and translations.
npm run preview opens a page with every vis-1 template next to its React widget; npm run preview:diff compares the two pixel by pixel and click by click (needs a local Chrome or Edge), and npm run preview:images renders the pictures of the palette and of the documentation.

Changelog

WORK IN PROGRESS

(bluefox) All widgets were ported to vis-2 as React widgets; vis-2 uses them instead of the vis-1 widgets, and projects keep working unchanged
(bluefox) The vis-2 palette shows a picture and a short description for every widget
(bluefox) Added documentation for every widget with pictures (English and German)
(bluefox) Choosing the set temperature of a heating tile fills the other states of the thermostat in vis-2 as well
(bluefox) Corrected the German labels of the widget settings and translated the missing ones
(bluefox) The adapter no longer requires vis; it shows a message if neither vis nor vis-2 is installed
(bluefox) The fonts Open Sans and PT Serif Caption are shipped with the adapter and no longer loaded from Google
(bluefox) The adapter icon is an SVG now
(bluefox) Updated the GitHub Actions to Node.js 24 and npm trusted publishing

1.2.0 (2022-02-12)

(bluefox) Updated build process

1.1.2 (2017-12-17)

(bluefox) Fixed metro-string widget

1.1.1 (2017-05-27)

(mctom) 2 Widgets added
(buanet) fix tplMetroTileStateNumber

1.1.0 (2016-11-12)

(bluefox) Support of new concept by vis

1.0.4 (2016-10-11)

(bluefox) fix Metro Widget Heating

1.0.3 (2016-09-21)

(bluefox) fix Metro Widget Tile State / val Badge Number

1.0.1 (2016-09-13)

(bluefox) fix Metro Widget "Tile Dialog"

1.0.0 (2016-03-15)

(bluefox) remove configuration dialog

0.2.1 (2016-01-31)

(vore) add tplMetroTileBoolDialog

0.2.0 (2015-12-14)

(bluefox) add custom icon for badges

0.1.11 (2015-12-03)

(bluefox) fix Tile ValueList 8: badge icon.

0.1.10 (2015-12-01)

(bluefox) fix bool/number widget: badge icon.

0.1.9 (2015-09-19)

(bluefox) fix Navigation widget: Brand Background wird nicht angezeigt, sobald Brand Background inactive und Brand Background active den selben Wert haben.
(instalator) support of old browsers

0.1.8 (2015-09-06)

(bluefox) remove prepublish script because installation is not possible

0.1.6 (2015-08-14)

(bluefox) prepublish script
(bluefox) update toggle widget

0.1.5 (2015-08-12)

(bluefox) protect against double event: click and touchstart

0.1.3 (2015-08-05)

(bluefox) fix metro-tile-heating window icon

0.1.2 (2015-07-25)

(bluefox) add mfd icons
(bluefox) fix widgets with sliders if "min" != 0

0.1.1 (2015-07-10)

(bluefox) make content_oid of "Tile Dialog / Badge Number" as object ID

0.1.0 (2015-06-29)

(siedi) Add: Service status and humidity to heating tile

0.0.1 (2015-06-28)

(bluefox) initial checkin

License

Third-party fonts

Both widget sets ship these fonts unmodified, so that nothing is loaded from Google. They are used on devices without Segoe UI and Cambria; the license texts ship next to them in widgets/metro/fonts/ and widgets/vis-2-widgets-metro/fonts/.

Open Sans 1.10 - Regular, Light and Bold. Digitized data copyright (c) 2010-2011 Google Corporation, licensed under the Apache License, Version 2.0.
PT Serif Caption 1.000W - Copyright (c) 2010 ParaType Ltd., with Reserved Font Names "PT Sans", "PT Serif" and "ParaType", licensed under the SIL Open Font License, Version 1.1.

Metro style Widgets for vis
