WitMotion

Reads data from WT901blecl 5.0 Bluetooth 5.0 9-Axis IMU Sensor (MPU9250) via USB and writes it to ioBroker datapoints.

The following data are read and written to ioBroker:

• Acceleration X/Y/Z
• Gyroscope X/Y/Z
• Magnetometer X/Y/Z

Supported devices

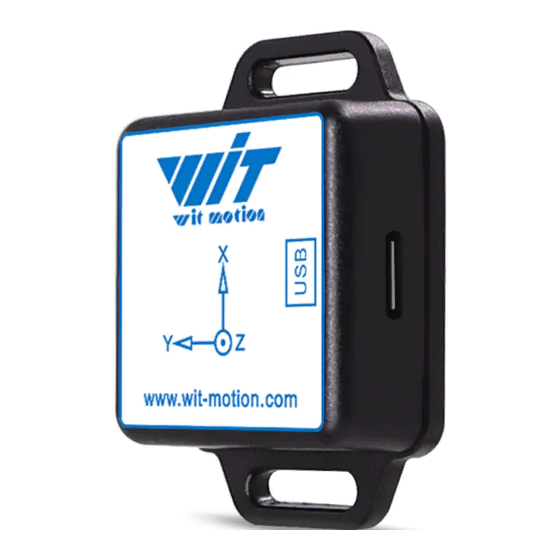

• WT901blecl 5.0

Device manager

The tab Device manager in the instance settings (or the device manager of admin) shows the sensor as a card with its connection and the angles (roll, pitch, yaw). The details list all enabled values and the connection. From the card you can test the connection and change the serial port and the baud rate.

Visualisation

Devices app

Add a custom widget of the type Wit Motion and select the instance. The tile shows a boat, a car or your own picture tilted by the measured angle, or a compass for the top view.

• 1x1 – one axis
• 2x½ – the values only
• 2x1 – one axis with its value or two axes side by side

A click on the tile opens a big view.

vis-2

The widget set WitMotion contains the widget Orientation with the same views. The layout follows the size of the widget (bar, compact, wide or big view) or can be fixed in the settings. A click on the smaller layouts opens the big view.

Changelog

2.1.2 (2026-10-28)

• (@GermanBluefox) Fixed the missing translations of the widget set, the widget name and the help in vis-2

2.1.1 (2026-10-14)

• (@GermanBluefox) Added device manager support
• (@GermanBluefox) Added an orientation widget for vis-2
• (@GermanBluefox) The used serial port (and in test mode the UDP port) is reported to js-controller 8 (registerUsedResource)
• (@GermanBluefox) Migrated to devices V3
• (@GermanBluefox) Added selection of the serial device by its stable USB ID (vendor/product/serial), so the connection keeps working even if the OS reassigns the port name
• (@GermanBluefox) Better widget
• (@GermanBluefox) Allowed the selection of USB port by path and UUID
• (@GermanBluefox) Added visualisation for "devices" adapter
• (@GermanBluefox) Added offset configuration for magnetometer
• (@GermanBluefox) Fixed the integration test, because of it the versions 0.1.0 - 2.1.0 were never published

0.0.4 (2026-03-26)

• (@GermanBluefox) Tests fixed

0.0.3 (2026-01-23)

• (@GermanBluefox) Initial commit
