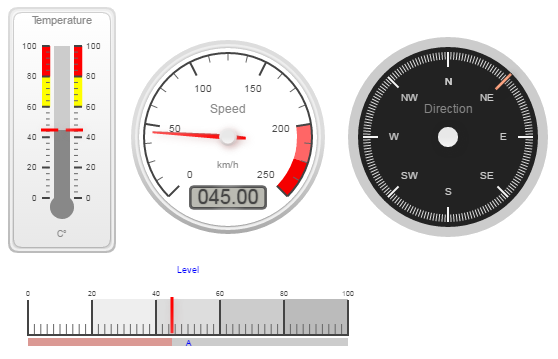

canvas-gauges - Canvas gauges for ioBroker.vis and ioBroker.vis-2 Example

Very detailed canvas library from Mikhus is used in this widget set. Thank you Mikhus.

You can find description of used library here: https://canvas-gauges.com

And on GitHub here

vis and vis-2

The adapter ships every widget twice:

vis (vis-1) uses the EJS/jQuery widget set in widgets/canvas-gauges.html.
vis-2 uses the React widget set in widgets/vis-2-widgets-canvas-gauges/, built from src-widgets/.

Both declare the same widget ids (tplCGlinearGauge, tplCGradialGauge, tplCGCompas, tplCGflatGauge) and the same attribute names, and vis-2 prefers a React widget over an EJS one. So a project made with vis keeps working after switching to vis-2 - the widgets simply render with the React implementation, without jQuery.

The progress bar (tplCGprogress) was added for vis-2 and has no counterpart in the vis-1 set.

The React widgets need vis-2 2.12.8 or newer. With an older vis-2 the EJS widgets are used.

Documentation

Every widget with its settings and screenshots: English | Deutsch

Changelog

WORK IN PROGRESS

(bluefox) All four widgets were ported to vis-2 as React widgets, without jQuery
(bluefox) Added the widget "Progress" - a plain bar for a battery, a tank or a humidity (vis-2 only)
(bluefox) The widgets follow the dark theme of vis-2: plate, scale, texts, rings and the track of the bar adapt, while the needle and the colour of the bar keep their meaning. Widgets placed before this version keep their look
(bluefox) Added the settings of the library that the vis-1 widgets never offered: section width and section ends of the highlights, exact ticks, numbers margin, stroke colour of the ticks, width of the value box and the shadow of the bar
(bluefox) The vis-2 palette shows a sharp preview and a short description for every widget
(bluefox) Added documentation for every vis-2 widget with screenshots (English and German)
(bluefox) The labels of the widget settings are translated properly now, in eleven languages
(bluefox) "Padding" of the bar ticks is applied to the ticks now instead of the round end of the bar
(bluefox) "Value weight" changes the weight of the value now instead of the font family of the scale
(bluefox) The scale keeps its last label if the step does not divide the range without a rounding error
(bluefox) A state that has no value yet when the view opens is subscribed now, so the gauge follows it
(bluefox) "Major ticks" is a text field in every widget now, so a list of labels can be used everywhere
(bluefox) The default needle type of the radial gauge is "arrow" instead of the unused word "select"
(bluefox) Removed the vis dependency and replaced it with a message by installation or update if neither vis nor vis-2 is installed

1.0.1 (2022-09-05)

(oweitman) Added workaround for firefox canvas problem

0.1.5 (2016-11-24)

(bluefox) do not scan DOM at start

0.1.4 (2016-11-18)

(bluefox) fix destroy of widgets

0.1.3 (2016-10-06)

(bluefox) fix highlights if min not zero

0.1.2 (2016-09-30)

(bluefox) translate english

0.1.0 (2016-09-26)

(bluefox) initial checkin
